Path clipping example

import numpy as np
import matplotlib.pyplot as plt
import matplotlib.path as mpath
import matplotlib.patches as mpatches

from matplotlib.patches import (PathPatch, Circle, Rectangle, Ellipse)
from matplotlib.path import Path

from mpl_skia_pathops import SkiaPath

# We will define shapes with Matplotlib. `mpl-skia-pathops` does not provide a
# convenient way to create shapes. Either you create skia path by your self, or
# create a Matplotlib Patch/Path and convert them to Skia one. We will follow
# the latter approach.

# Boundary is required if and only if you want to invert the path.
boundary_ext = [-1.5, 1.5, -1, 1]
boundary = Rectangle((boundary_ext[0], boundary_ext[2]),
                     width=boundary_ext[1] - boundary_ext[0],
                     height=boundary_ext[3] - boundary_ext[2]
                     )

a = Circle((-0.5, 0), radius=0.75)
# b = Rectangle((-0.2, -0.5), 1.2, 1.)
b = Ellipse((0.5, 0), 1.5, 1.2)

# a concatenation of two paths.
a_b = Path.make_compound_path(
    a.get_patch_transform().transform_path(a.get_path()),
    b.get_patch_transform().transform_path(b.get_path())
)

# Now we convert these to skia path.
skia_boundary = SkiaPath.from_mpl(boundary)

A = SkiaPath.from_mpl(a)
A.set_boundary(skia_boundary)
B = SkiaPath.from_mpl(b)
B.set_boundary(skia_boundary)

# Path effect.
import mpl_visual_context.patheffects as pe

path_effects = [pe.FillOnly() | pe.GCModify(alpha=0.3),
                pe.StrokeOnly()]

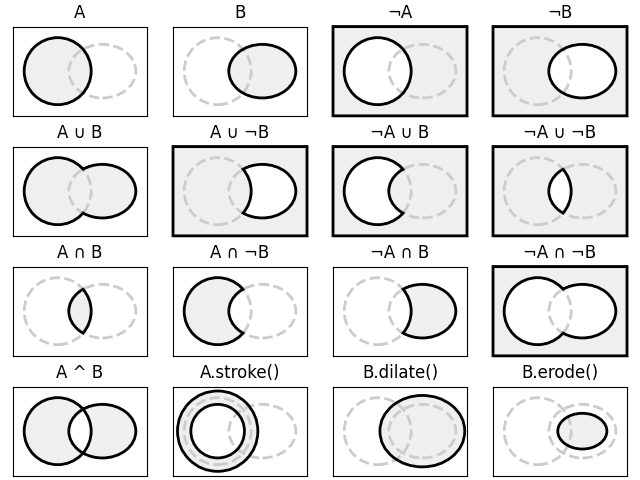

# list of operations

operations = [
    ("A", lambda A, B: A),
    ("B", lambda A, B: B),
    ("¬A", lambda A, B: ~A),
    ("¬B", lambda A, B: ~B),
    ("A ∪ B", lambda A, B: A | B),
    ("A ∪ ¬B", lambda A, B: A | ~B),
    ("¬A ∪ B", lambda A, B: ~A | B),
    ("¬A ∪ ¬B", lambda A, B: ~A | ~B),
    ("A ∩ B", lambda A, B: A & B),
    ("A ∩ ¬B", lambda A, B: A & ~B),
    ("¬A ∩ B", lambda A, B: ~A & B),
    ("¬A ∩ ¬B", lambda A, B: ~A & ~B),
    ("A ^ B", lambda A, B: A ^ B),
    ("A.stroke()", lambda A, B: A.stroke(stroke_width=0.3)),
    ("B.dilate()", lambda A, B: B.dilate(stroke_width=0.4)),
    ("B.erode()", lambda A, B: B.erode(stroke_width=0.4))
]


# plot

fig, axs = plt.subplots(4, 4, num=1, clear=True, layout="constrained")
for ax, (label, op) in zip(axs.flat, operations):
    ax.set_aspect(1)

    # we first add the concatenated one.
    p = PathPatch(a_b, fc="none", ec="0.8", ls="--", lw=2, zorder=1)
    ax.add_patch(p)

    # now the one with the operation applied.
    cc = op(A, B)
    p = PathPatch(cc.to_mpl(), fc="0.8", ec="k", lw=2, zorder=2, clip_on=False)
    ax.add_patch(p)
    p.set_path_effects(path_effects)

    ax.set(title=label, xlim=boundary_ext[:2], ylim=boundary_ext[2:])
    ax.tick_params(left=False, bottom=False, labelbottom=False, labelleft=False)

plt.show()
